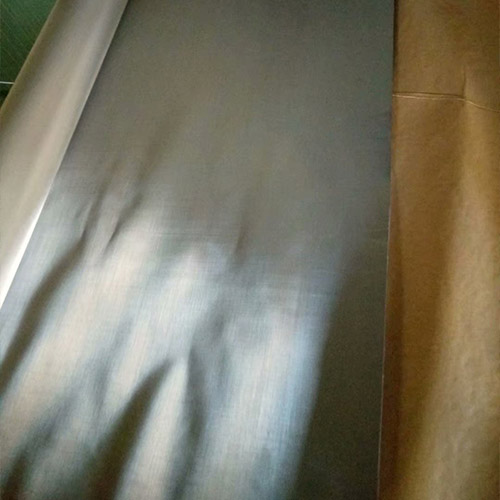

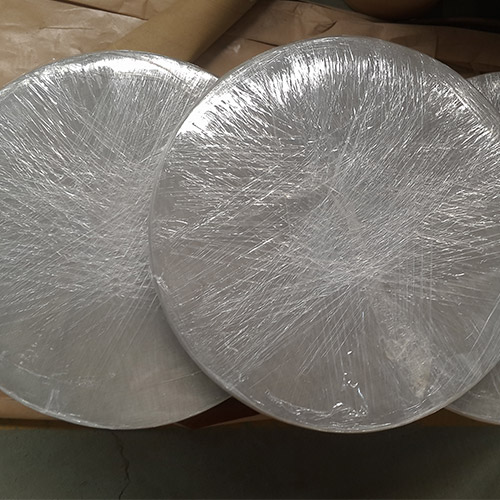

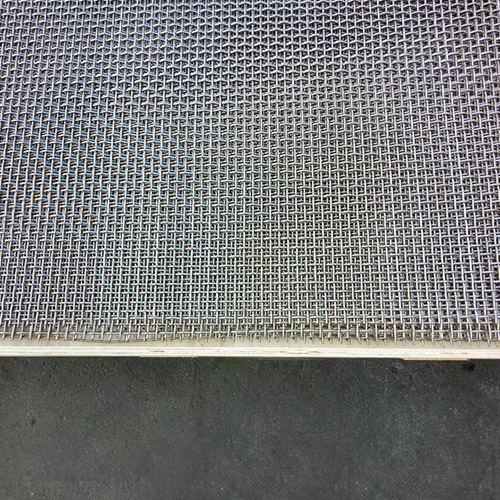

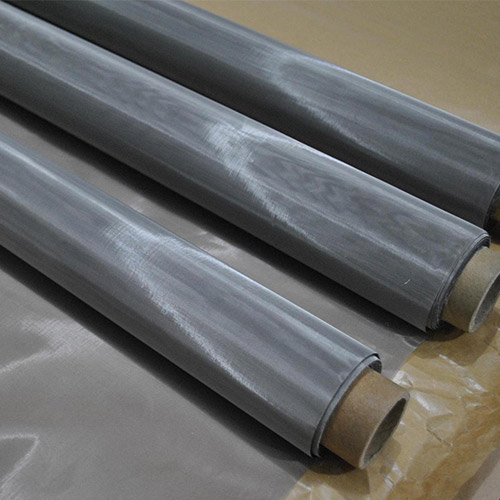

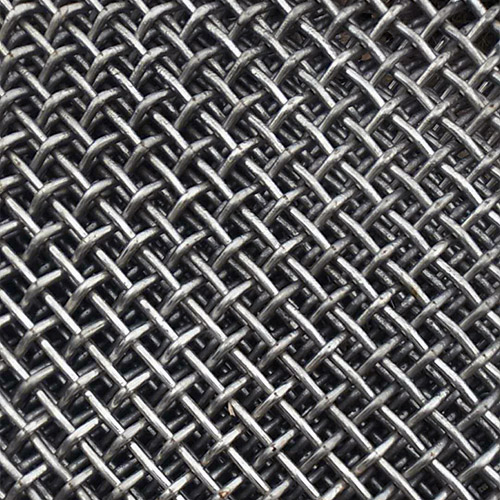

Stainless Steel Wire Mesh 254Mo

The 254SMO wire mesh(DIN1.4547 or UNS S31254 wire mesh) is a highly corrosion-resistant stainless steel containing high chromium and high molybdenum.Even in harsh environments such as high temperature and sea water,254SMO maintains good corrosion resistance. In some conditions, it is comparable with hastelloy wire mesh and titanium wire mesh.It is high corrosion resistance and high economical stainless steel.
Availability:
Quantity:
  • SS11

  • GY-MESH

  • 7314140000

Also as an kind of austenitic stainless steel,254SMO stainless steel ,  has high molybdenum content, so it has extremely high pitting and crevice corrosion resistance.254SMO stainless steel was developed for using in halide environments such as seawater. 254SMO also can supply super resistance to uniform corrosion.Especially in halide acids, the steel is better than ordinary stainless steel. After drawn and annealed, 254SMO stainless steel wire can be produced into a wire mesh. Gaoyuan is a manufacturer specializing in the production and sale of 254SMO wire mesh.


The 254SMO wire mesh(DIN1.4547 or UNS S31254 wire mesh) is a highly corrosion-resistant stainless steel containing high chromium and high molybdenum.Even in harsh environments such as high temperature and sea water,254SMO maintains good corrosion resistance. In some conditions, it is comparable with hastelloy wire mesh and titanium wire mesh.It is high corrosion resistance and high economical stainless steel.


Application of stainless steel 254SMO wire mesh

1,In seawater environment : seawater desalination device, seawater heat exchanger, capacitor tube, etc.

2,In high concentration of chloride ion environment: pulp and paper industry, various bleaching devices, etc.

3,In the environment containing high concentrations of salt: resin manufacturing equipment, pharmaceutical reaction vessels and piping.


Weave term of 254SMO(DIN1.4547) wire mesh

Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave


Chemical Composition of 254SMO wire mesh

 254 SMO

Chemical Composition

AISI

EN/DIN

UNS/ ASTM

C

Mn

P

S

Si

Cr

Ni

Cu

Mo

254SM0

1.4547

 S31254

≦0.02

≦1.00

≦0.03

≦0.01

≤0.8

19.500-20.5

17.5-18.50

0.5-1.0

6.0-6.5
