Views: 24 Author: Site Editor Publish Time: 2019-01-04 Origin: Site

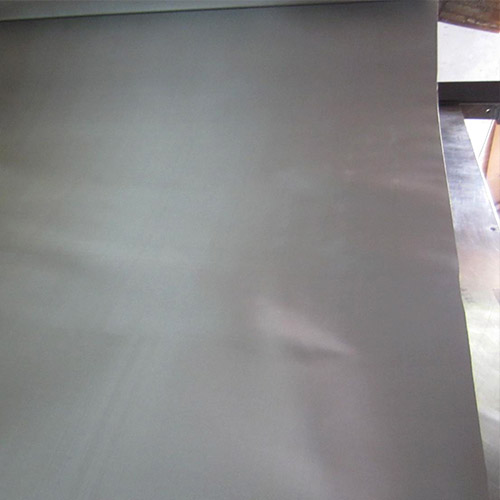

SS 1.4401 wire mesh as known( S31600 wire mesh or stainless steel 316 wire mesh) is an austenitic stainless steel wire mesh.Because of the addition of Mo, it has a great increase in corrosion resistance and high temperature strength.It can resist high temperatures up to 1200-1300 degrees and can be used under harsh conditions.
1.4401/S31600 wire mesh's capabilities:
1,Corrosion resistance:Corrosion resistance is better than 304/S1.4301 stainless steel, with good corrosion resistance in the production process of pulp and paper. And 316 stainless steel is also resistant to the erosion of marine and aggressive industrial atmospheres.
2,High temperature resistance:1.4401/S31600 (06Cr17Ni12Mo2) has good oxidation resistance in intermittent use below 871 ° C (1600 ° F) and continuous use above 927 ° C (1700 ° F).
1.4401/S31600 wire mesh's weave types:
Plain weave,Twilled Weave,Dutch Weave, Welded Weave, Knitted Weave
1.4401/S31600 wire mesh's chemical composition:
| Chemical Composition | |||||||
| C | Mn | P | S | Si | Cr | Ni | Mo |
| ≤0.08 | ≤2 | ≤0.045 | ≤0.030 | ≤1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
1.4401/S31600 wire mesh's physical property:
| physical property | |||
| Tensile Strength | Elongation | Melt | Max. Operating Temperature |
| 104 Kpsi | 44% | 1400℃ | 870℃ |
