Generally, the corrosion resistance of Monel K500 wre mesh in solid solution state is basically same as monel 400 wire mesh. Therefore, the corrosion resistance data of Monel 400 mesh can be applied to Monel K500 mesh. Due to the low corrosion rate in flowing seawater and the high strength, Monel K5

Inconel 617 alloy wire mesh( also called UNS N06617 wire mesh,standard of America) is one kind of inconel wire mesh.Inconel 617 is a nickel – chromium -cobalt – molybdenum alloy wire mesh.The Co is 10-15% and the Mo is 8-10%.The inconel 617 wire mesh is generally used in applications for aircrafts,

Inconel 625 is an alloy grade of inconel alloy and its density is 8.4g/cm3.The melting point is 1290-1350 °C. It has excellent resistance to inorganic acid corrosion and excellent corrosion resistance to various corrosive and reducing environments.inconel 625 offer excellent corrosion resistance in

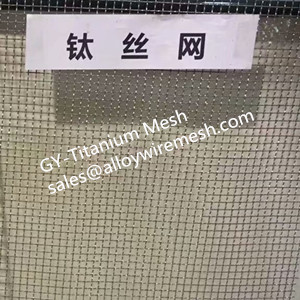

Titanium material grade:TA1, TA2, GR2, GR3, R50250, titanium alloy, etc.Mesh type: plain weaving, twill weaving,dutch weaving, sheet mesh

Monel 400 wire mesh is multiduty alloy wire mesh.It is a Nickel-chromium-copper alloy wire mesh and the Ni is 63%,Cr is 19-21% and Cu is 28-34%. It has excellent resistance to corrosion and high temperature and it is widely used in electricity and electron component,water-heater and heat-exchange equipment. The monel wire mesh has super performance in petroleum industry,shipborne equipment,pump etc

Monel K500 (K500, NCu30-2-1, UNS N05500) alloy has the same mechanical properties as high strength, corrosion resistance and non-magnetic properties,and also has the same corrosion resistance of Monel 400.It can be used as pump shaft material and is suitable for working under geological conditions o

Hastelloy C-22 wire mesh is a multifunctional hastelloy alloy mesh with excellent overall corrosion resistance. There are many chemical factorys to need hastelloy C-22 wire mesh to offer resitance to corrosion and high temperature in filtering. The molybdenum of hastelloy C-22 alloy is 13%. It is difficult to produce hastelloy C-22 alloy wire mesh because that molybdenum is very hard and tough. We fistly need to know the mechanical property of the hastelloy alloy if want to produce hastelloy hastelloy C-22 mesh.

The alloy has excellent corrosion resistance in fluorine gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives.Acid medium: monel wire mesh is corrosion resistant in sulfuric acid with a concentration of less than 85%.M400 is one of the few materials that can offer resistance to hydrofluoric acid. Water corrosion: monel alloy wie mesh has excellent corrosion resistance in most water corrosion conditions, and pitting corrosion and stress corrosion are rarely found. Corrosion rate is less than 0.025mm/a. High temperature corrosion: the highest temperature of M400 continuous operation in air Generally, at about 600 ° C, in high temperature steam, the corrosion rate is less than 0.026 mm / a. Ammonia: Due to its high nickel content, Monel 400 wire mesh can withstand corrosion under anhydrous ammonia and ammoniation conditions below 585 °C.

TThe structure of monel 400 alloy wire mesh is a high-strength single-phase solid solution, single-phase austenite structure. Monel 400 mesh is the corrosion-resistant alloy mesh with the largest using, the most versatile and excellent comprehensive performance.Monel alloy wre mesh has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and excellent corrosion resistance to hot concentrated alkali liquor. It is also resistant to corrosion by neutral solutions, water, sea water, the atmosphere, organic compounds, etc

Monel 400 wire mesh, also known as nickel alloy mesh,is an alloy made of metal nickel as a base, adding other elements such as copper, iron and manganese. Monel 400 mesh has good corrosion resistance and is silver-white, suitable for edge wire materials.Monel 400 alloy wire mesh is mainly used in the fields of chemistry and petrochemicals and marine development. Monel mesh is used to manufacture a variety of heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, vessels, towers, tanks, valves, pumps, reactors, shafts, etc.
