Stainless Steel Wire Mesh 410

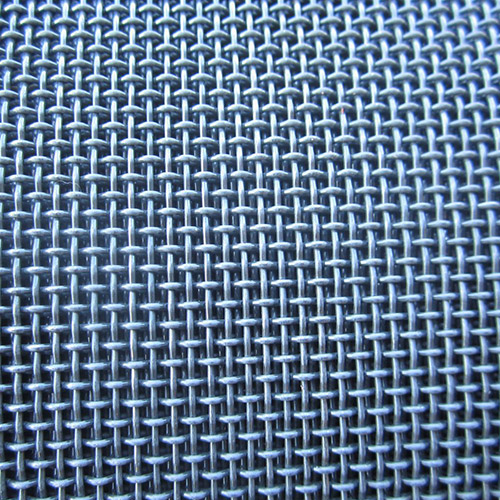

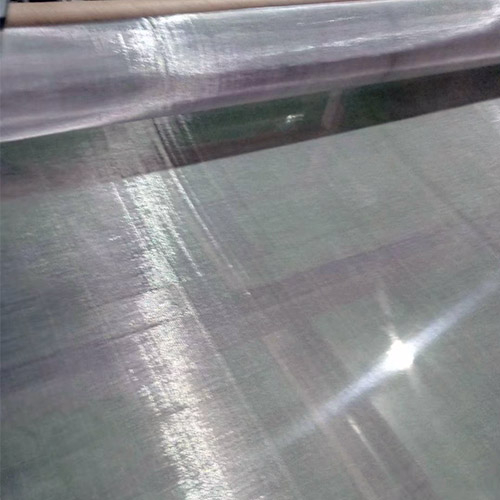

410 Stainless Steel Wire Mesh

410 stainless steel wire mesh is called DIN1.4006 wire mesh or UNS S4100 wire mesh, which is made by drawing and weaving 410 stainless steel.Stainless steel 410 mesh is the general purpose hardenable, corrosion and heat resisting steel. It readily responds to hardening and tempering operations between 1100-1350°F. With different heat treatments this steel develops excellent combinations of strength and toughness over a wide range of mechanical properties. stainless steel 410 mesh is resistant to dry atmospheres, fresh water corrosion, and a variety of mild acids and alkaline.

410 Stainless Steel Alloy

410 stainless steel is a stainless steel grade produced in accordance with American ASTM standards, which is equivalent to China's 1Cr13 stainless steel, S41000 (American AISI, ASTM).Carbon containing 0.15%, chromium containing 13%, 410 stainless steel: Has good corrosion resistance, machinability, general purpose blades, valves. 410 stainless steel heat treatment: solid solution treatment (℃) 800-900 slow cooling or 750 fast cooling.

Feature of 410 Stainless Steel

1) High intensity

2) Excellent machinability

3) Hardening occurs after heat treatment

4) Magnetic

5) Not suitable for harsh corrosive environments

Weave Pattern of Stainless Steel 410 Wire Mesh

Plain Weave ,Twilled Weave,Dutch Weave, Welded Weave, Knitted Weave,Crimped weave

Other Names of 410 Stainless Steel Wire Mesh

DIN 14006 stainless steel wire mesh

UNS S4100 stainless steel wire mesh

T-410 stainless steel wire mesh

SUS410 stainless steel wire mesh

Chemical Composition of 410 Stainless Steel Wire Mesh

Mechanical properties of 410 Stainless Steel Wire Mesh
