SS01
GY-MESH
7314140000

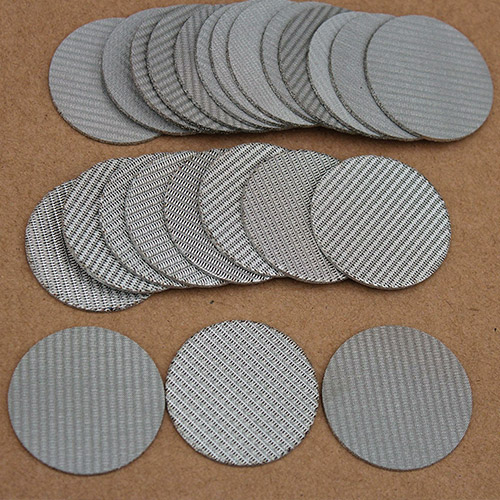

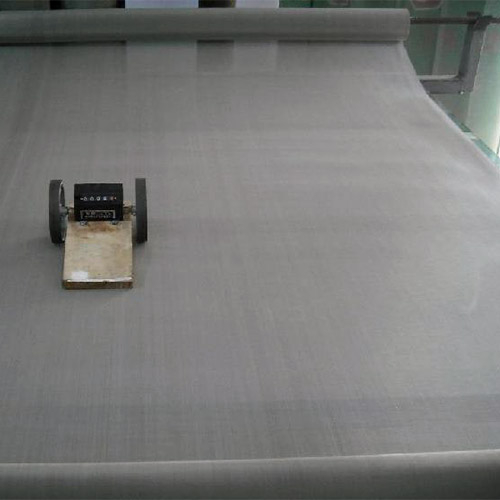

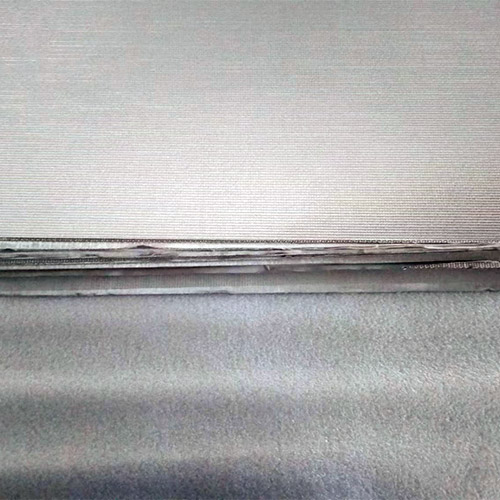

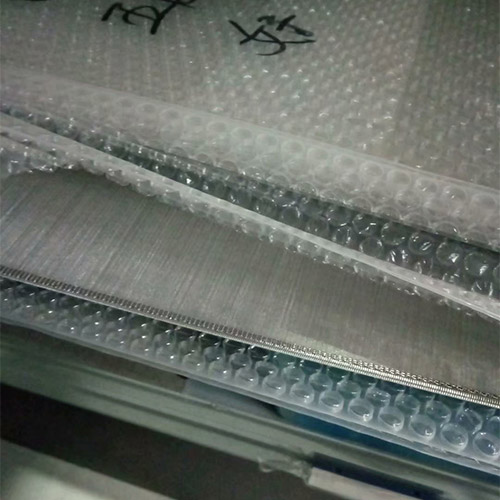

304/304L Stainless Steel Wire Mesh
304/304L stainless steel wire mesh is used for sieving and filtering under acid and alkaline environment conditions.
The petroleum industry is used as a mud mesh, the chemical fiber industry is used as a sieve mesh, and the electroplating industry is used as a pickling mesh.
304/304L stainless steel is the most widely used type of chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance and heat resistance.
304/304L stainless steel is a common material in stainless steel and is widely used in industry and furniture Decoration industry and food medical industry.
For 304/304L stainless steel, the Ni element in its composition is very important, which directly determines the corrosion resistance of 304/304L stainless steel and its value.
The most important elements in 304/304L stainless steel are Ni and Cr, but they are not limited to these two elements. Specific requirements are specified by product standards.
Common judgments in the industry suggest that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304/304L stainless steel. Carbon content of 304L stainless steel is lower than 304, it is used where welding is required.
Lower carbon content minimizes carbide precipitation in the heat-affected zone near the weld, and the precipitation of carbides can cause stainless steel to have intergranular corrosion (weld erosion) in some environments.
Applications of 304/304L Stainless Steel Wire Mesh
1, Used for sieving and filtering under acid and alkali environment conditions. The petroleum industry is used as a slurry screen, the chemical fiber industry is used as a screen and the electroplating industry is used as a pickling screen.
2, used in mining, petroleum, chemical, food, pharmaceutical, machinery manufacturing and other industries.
3,Sieving and filtering under acid and alkali environment, petroleum industry as mud net, chemical and chemical fiber industry as sieve, electroplating industry as pickling net.
Weave Term of 304/304L Stainless Steel Wire Mesh

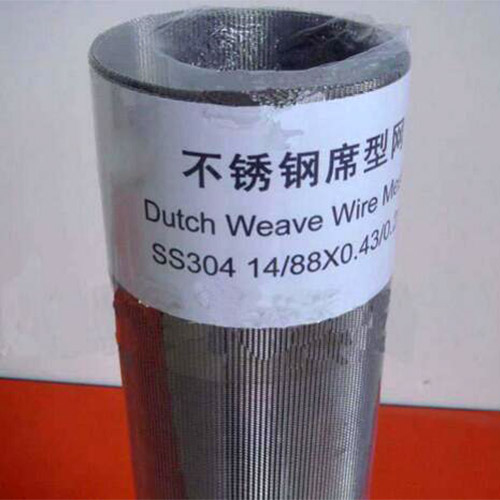

Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave.
Other Names of 304/304L Stainless Steel Wire Mesh
DIN 14301 stainless steel wire mesh
DIN 14306 stainless steel wire mesh
UNS S30400 wire mesh
UNS S30403 wire mesh
Chemical Composition of 304/304L Stainless Steel Wire Mesh
| Certifiction | |||||||||||
| Stainless steel | Chemical Composition | ||||||||||
| AISI | EN/DIN | UNS/ASTM | C | Mn | P | S | Si | Cr | Ni | Mo | Ti |
| 304 | 14301 | S30400 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0–20.0 | 8.0-11.0 | ||
| 304L | 14306 | S30403 | ≤0.03 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.0 | 18.0～20.0 | 8.0-12.0 | ||
Mechanical properties of 304/304L Stainless Steel Wire Mesh
| Certifiction | ||||||
| Stainless steel | Mechanical properties | |||||
| AISI | EN/DIN | UNS/ASTM | Tensile Strength | Elongation | Melt | Max. Operating Temperature |
| 304 | 14301 | S30400 | 120 Kpsi | 35% | 2600° F | 1600° F |
| 304L | 14306 | S30403 | 120 Kpsi | 55.0% | 2550° F | 800 - 1600° F |
304/304L Stainless Steel Wire Mesh
304/304L stainless steel wire mesh is used for sieving and filtering under acid and alkaline environment conditions.
The petroleum industry is used as a mud mesh, the chemical fiber industry is used as a sieve mesh, and the electroplating industry is used as a pickling mesh.
304/304L stainless steel is the most widely used type of chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance and heat resistance.
304/304L stainless steel is a common material in stainless steel and is widely used in industry and furniture Decoration industry and food medical industry.
For 304/304L stainless steel, the Ni element in its composition is very important, which directly determines the corrosion resistance of 304/304L stainless steel and its value.
The most important elements in 304/304L stainless steel are Ni and Cr, but they are not limited to these two elements. Specific requirements are specified by product standards.
Common judgments in the industry suggest that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304/304L stainless steel. Carbon content of 304L stainless steel is lower than 304, it is used where welding is required.
Lower carbon content minimizes carbide precipitation in the heat-affected zone near the weld, and the precipitation of carbides can cause stainless steel to have intergranular corrosion (weld erosion) in some environments.
Applications of 304/304L Stainless Steel Wire Mesh
1, Used for sieving and filtering under acid and alkali environment conditions. The petroleum industry is used as a slurry screen, the chemical fiber industry is used as a screen and the electroplating industry is used as a pickling screen.
2, used in mining, petroleum, chemical, food, pharmaceutical, machinery manufacturing and other industries.
3,Sieving and filtering under acid and alkali environment, petroleum industry as mud net, chemical and chemical fiber industry as sieve, electroplating industry as pickling net.
Weave Term of 304/304L Stainless Steel Wire Mesh
Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave.
Other Names of 304/304L Stainless Steel Wire Mesh
DIN 14301 stainless steel wire mesh
DIN 14306 stainless steel wire mesh
UNS S30400 wire mesh
UNS S30403 wire mesh
Chemical Composition of 304/304L Stainless Steel Wire Mesh
| Certifiction | |||||||||||
| Stainless steel | Chemical Composition | ||||||||||
| AISI | EN/DIN | UNS/ASTM | C | Mn | P | S | Si | Cr | Ni | Mo | Ti |
| 304 | 14301 | S30400 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0–20.0 | 8.0-11.0 | ||
| 304L | 14306 | S30403 | ≤0.03 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.0 | 18.0～20.0 | 8.0-12.0 | ||
Mechanical properties of 304/304L Stainless Steel Wire Mesh
| Certifiction | ||||||
| Stainless steel | Mechanical properties | |||||
| AISI | EN/DIN | UNS/ASTM | Tensile Strength | Elongation | Melt | Max. Operating Temperature |
| 304 | 14301 | S30400 | 120 Kpsi | 35% | 2600° F | 1600° F |
| 304L | 14306 | S30403 | 120 Kpsi | 55.0% | 2550° F | 800 - 1600° F |
